Choosing the right display architecture requires balancing ambient light, thermal efficiency, and viewing distance, with an advertising Led Display offering seamless scalability and unmatched visual impact for high-traffic retail spaces.
Technical Foundations: Core mechanics of liquid crystal polarization versus direct emissive diode illumination.
Retail Use Cases: Optimal deployment strategies across indoor floors, sunlit storefront windows, and large architectural walls.
Key Performance Metrics: Direct comparisons of brightness, viewing distances, form factors, and power consumption.
Engineering Guidelines: Practical criteria for hardware selection and long-term maintenance.

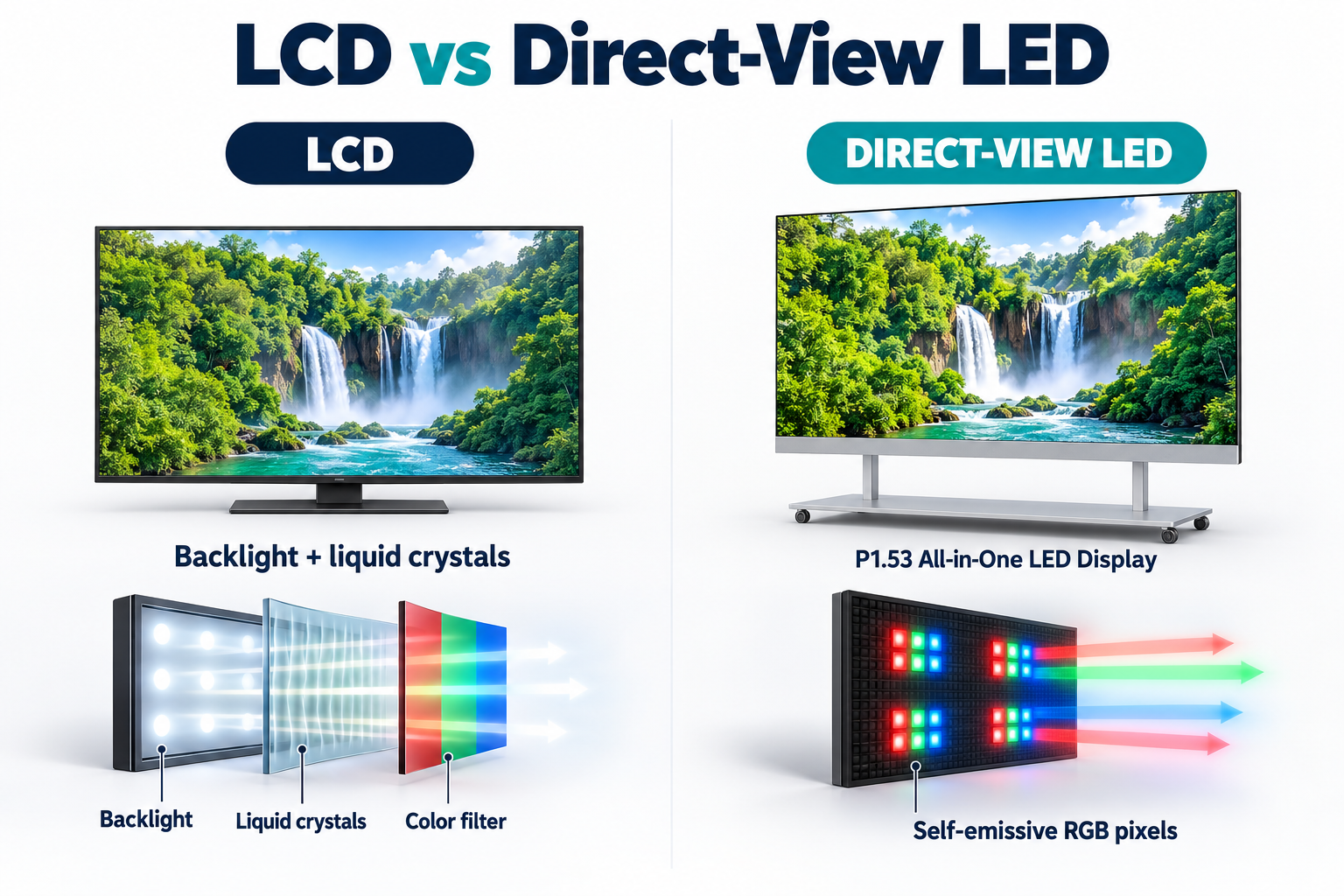

Liquid crystal displays rely on a layered optical stack with a continuous rear backlight unit. Light passes through polarizing filters and liquid crystal molecules that rotate to control passage through RGB color filters. Because the backlight runs continuously, dark areas suffer from light leakage, limiting absolute black levels and static contrast ratios.
Direct emissive LED displays eliminate backlights by using microscopic semiconductor diodes that generate light and color directly. Each RGB sub-pixel operates as an independent emitter, turning completely off for true blacks and infinite contrast. This architecture ensures vibrant colors, wide viewing angles, and ultra-slim modular profiles without light distortion.
System longevity depends on driver ICs, heat sinks, and PCB substrate quality. While LCDs risk backlight decay and polarization film yellowing, LED panels require balanced current control to manage heat across dense diode arrays. High-refresh driver ICs eliminate video flickering, ensuring clean smartphone capture for retail shoppers.
Commercial retail spaces feature varying lighting levels, from controlled indoor aisles to high-glare storefront glass and multi-story central atriums. Selecting the right display technology requires matching the optical output and physical structure to the environmental demands of each store zone.
Indoor merchandising aisles and service counters maintain low ambient lighting between 500 and 1000 lux. LCD panels operating at 500 to 700 nits deliver crisp, clear visuals at close viewing distances under one meter. Their fine pixel matrices make them cost-effective for detail-heavy content like interactive catalogs, pricing screens, and counter displays. For expansive wall spaces requiring seamless visuals, deploying an advertising Led Display or an all-in-one P1.53 indoor full-color LED display screen for conference rooms offers a sleek alternative without bezel grid lines.
Storefront windows face direct sunlight exceeding 100,000 lux, causing standard LCD displays to suffer thermal blackout and heavy glare. Direct emissive LED displays provide 3000 to 5000+ nits of brightness, cutting through sun glare easily to engage passing shoppers. Their high heat resistance and semi-transparent design options preserve natural interior light while broadcasting clear promotional media outside.
Large feature walls, column wraps, and multi-story atrium displays require seamless integration impossible with LCD panels, which leave visible grid lines from protective bezels. LED cabinets lock together with micron tolerances, creating completely seamless visual canvases of any size or shape. This flexibility allows flagship retail stores to build immersive, high-impact branding environments.
Evaluating commercial displays requires assessing core optical, mechanical, and electrical metrics rather than surface specifications. Understanding brightness, pixel pitch, structural flexibility, and energy efficiency ensures the hardware meets daily operational demands over its entire lifespan.
Indoor retail displays require 500 to 700 nits to maintain legibility under standard overhead lighting. High-glare window spaces need at least 2000 to 3000 nits to overpower daylight reflections. LED systems maintain high output without the backlight yellowing or thermal degradation common in LCDs over extended use.
Viewing distance governs pixel pitch choice (the distance between pixel centers in millimeters). Close-range displays near checkout counters or cosmetics stations require 0.9mm to 1.5mm pixel pitches to eliminate visible pixelation. Displays mounted higher up or viewed from afar perform effectively at 2.5mm to 4.0mm pitches, saving on hardware costs without sacrificing image quality.
LCDs are locked into rigid rectangular dimensions with defined outer bezels, limiting custom architectural builds. LED displays use modular cabinet tiles that assemble into concave curves, convex cylinders, right-angle corner wraps, and custom shapes that blend directly into store architecture.
LCD displays draw constant power regardless of screen content because their backlights run continuously. LED displays feature dynamic power consumption that scales directly with content brightness, drawing far less power during dark scenes. This dynamic efficiency reduces total electricity overhead across multi-store retail networks.
Choosing the optimal display architecture depends on matching your retail location's environmental conditions, spatial layouts, and operational goals with the right hardware strengths.
Cost-effective setups for standard indoor aisles with short viewing distances and controlled lighting.
Crisp 4K resolution on small-scale screens for interactive product catalogs, shelf displays, or directional kiosks.
Fast, standardized installation using standard VESA mounts without structural modifications.
Reliable performance during regular store operating hours for static schedules and standard video loops.
Plug-and-play operation that connects directly to standard media players and CMS networks.
Ultra-bright window displays designed to cut through heavy solar glare and attract street traffic.
Massive, bezel-free video walls that wrap smoothly around store columns or span multi-story atrium spaces.
Continuous 24/7 commercial durability with minimal brightness decay and superior thermal management.
High-impact visual depth featuring deep contrast, rich color ranges, and wide off-axis viewing angles.
Versatile commercial displays, such as deploying a sleek advertising Led Display with built-in media processing and remote network management.
