When choosing an LED display, most people look at pixel pitch, brightness, and refresh rate. But there's another factor that matters just as much: packaging technology. It affects how the screen looks, how long it lasts, how much maintenance it needs, and where you can use it.

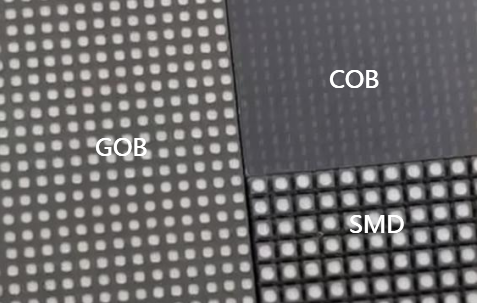

Right now, three packaging technologies dominate the market: SMD, COB, and GOB.
This guide breaks down the differences, helps you choose, and matches each technology to real-world applications.

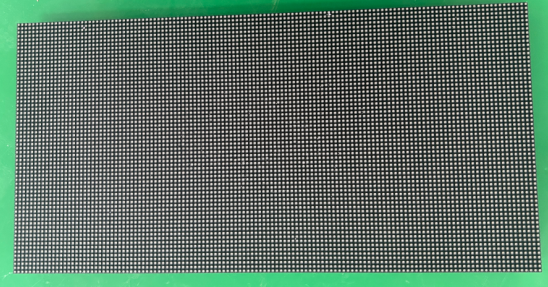

Production process: Red, green, and blue LED chips are packaged into a single lamp bead, then soldered onto a circuit board. This is the traditional method and still the most common.
Structural features: Each lamp bead stands alone. The module surface has visible bumps — a point-like light-emitting structure. The solder joints and pins are fully exposed.
Typical use: Outdoor advertising screens, indoor fixed screens, rental screens.

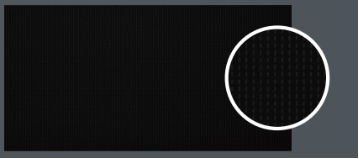

Production process: Multiple LED chips are mounted directly onto a circuit board and then covered with glue as one sealed unit. No individual lamp bead casing.
Structural features: No lamp beads, no brackets, no separate packaging. The chips sit flat on the board. The surface is completely smooth — surface light source emission.
Typical use: Small-pitch screens, conference rooms, security monitoring.

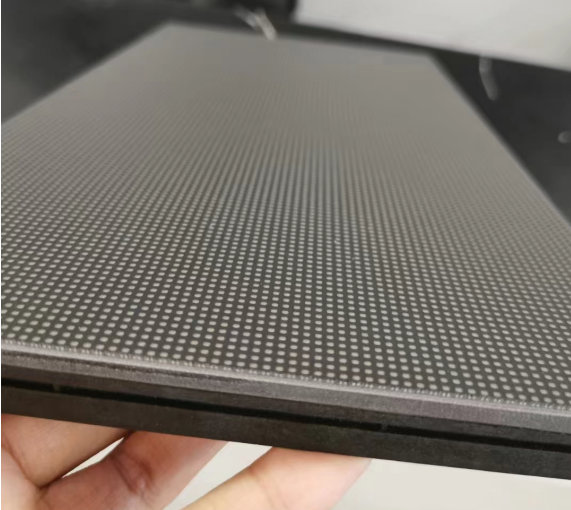

Production process: Starts with the SMD process — lamp beads soldered onto the board as usual. Then a clear, tough, anti-yellowing epoxy resin layer is poured over the entire module surface and cured.
Structural features: Keeps the SMD lamp bead structure underneath, but everything — lamp beads, solder joints, circuits — is wrapped in a protective glue film. The surface gaps are filled, but light still passes through.
Typical use: Interactive floor tiles, outdoor high-reliability screens, rental screens.
Parameter | SMD | COB | GOB |
|---|---|---|---|
Protection | Moderate | Strong | Very strong |
Display Quality | Good | Excellent | Similar to SMD |
Heat Dissipation | Moderate | Excellent | Moderate |
Minimum Pitch | ~P1.2 | P0.9 and below | Same as SMD |
Maintenance Cost | Low | High | Medium |
Impact Resistance | Weak | Medium | Strong |
Typical Environment | Indoor/outdoor | Indoor, close view | High-reliability |
What's good: Mature tech, stable supply, lowest price, easy to fix (single lamp replacement), works almost everywhere. Outdoor version hits IP65 protection.
What's not: Lamp bead gaps trap dust and moisture. Not great for small-pitch applications — you'll see graininess and seams. Heat dissipation is just okay.
Here's a common mistake: Some buyers think "SMD is outdated and I need GOB or COB." That's usually a waste of money. For standard indoor and outdoor use, SMD is still the smart choice.
What's good: The glue coating changes everything — dustproof, waterproof, impact-resistant. Display quality is slightly better than SMD. Cost is 30-50% higher than SMD, still lower than COB.
What's not: Harder to repair. To replace a lamp bead, you have to peel off the glue. Heat dissipation is still limited by the lamp bead structure underneath.
Here's a common mistake: Thinking "GOB can replace SMD everywhere." Not true. For dry indoor spaces with no impact risk, SMD is still cheaper and does the job just fine.
What's good: No graininess, no seams, colors blend perfectly — great for close viewing. The chip is fully wrapped in resin, so dust, water, and corrosion aren't issues. Heat dissipation is excellent. Energy use is about 40% lower than SMD.
What's not: Expensive — 80-120% more than SMD. If a single pixel fails, you replace the whole module. That means higher repair costs and you need a trained technician.
Here's a common mistake: "COB is better, so I'll use it for everything." That's overkill. For standard scenarios, you're paying for features you won't use.
✅ Go with SMD if: Outdoor billboards, rental displays, or general indoor fixed installations. It works, it's cheap, it's easy to fix.
✅ Go with COB if: You need small pitch (P1.2 or below), high-end conference rooms, or security monitoring with long runtime. You want the best display quality and have the budget.
✅ Go with GOB if: Floor tiles where people step on them, outdoor projects in harsh environments (coastal, dusty, rainy), or rental screens that get moved constantly.
Based on the comparison above, here are our recommended products for each technology:
Best for: Outdoor billboards, rental screens, general indoor use
Best for: High-end conferences, control rooms, small-pitch needs
Best for: Floor tiles, outdoor reliability, frequent rental
Q1: Which packaging technology works best outdoors? ▼
SMD with IP65 rating is the standard choice — cost-effective and widely used. For really harsh environments like coastlines or dusty areas, GOB adds extra protection. COB is mostly for indoors.
Q2: Is COB really "better" than SMD? ▼
Better at some things, not at others. COB gives you smoother display and better heat management, but it costs 80-120% more and repairs are expensive. For many projects, SMD is the smarter financial choice. COB only makes sense for small-pitch, high-end applications.
Q3: Can you repair GOB screens? ▼
Yes, but it's more work than SMD. You have to peel off the glue, replace the lamp bead, then reapply the glue. Maintenance cost is medium — higher than SMD, lower than COB.
Q4: What's best for rental LED screens? ▼
Both SMD and GOB work. Pick SMD if you want easy, cheap repairs when lamps get damaged during transport. Pick GOB if you want the screen to survive more bumps and knocks. It's a trade-off between repairability and durability.
Q5: How do I actually decide which one to buy? ▼
Ask yourself four questions: How close will people stand? (close = COB). How harsh is the environment? (harsh = GOB). Will the screen get bumped or stepped on? (yes = GOB). What's your budget? (tight = SMD). Match your answers to the table above.
There's no single "best" packaging technology — only what fits your project.
SMD: Mature, cost-effective, gets the job done.
COB: Premium display, ultra-small pitch, higher cost.
GOB: Tougher than SMD, cheaper than COB. A solid middle ground.
