What you'll learn:
Technology Core: The structural mechanics of transparent LED screens.
Optical Physics: How high light transmission balances with visual brightness.
Hardware Comparisons: Technical differences between glass screens and conventional video walls.
Engineering Metrics: Key performance parameters including pixel pitch and transparency ratios.
Architectural Integration: Mounting methods and structural lamination options.
Commercial Applications: High-impact deployments across retail and corporate venues.
Selection Framework: Engineering guidelines for pixel density and thermal management.
A glass LED screen mounts SMD or micro-LED arrays onto ultra-thin aluminum louvers or transparent conductive films. This physical separation allows ambient daylight and interior lighting to pass through with minimal shadow projection.
When viewed from a distance, the human eye merges the emitted light into a seamless full-color image. When idle, the underlying structure remains unobtrusive. Rigid glass modules offer robust environmental protection, while flexible transparent films apply directly to existing interior glass windows.
Structural Substrate: Composed of tempered glass or optical PET film to provide mechanical rigidity and optical clarity.
Conductive Circuit Layer: Uses ITO or copper PCB traces to deliver electrical power and video data.
Light-Emitting Array: Features high-brightness SMD chips generating RGB light for daylight visibility.
Integrated Driver System: Utilizes PWM driver ICs to control current output and refresh rates.
For internal corporate presentation spaces requiring complete contrast control, engineers deploy an indoor full color LED display screen for conference rooms. Glass displays, conversely, are dedicated to exterior glass facades where daylight pass-through is mandatory.
Power supplies and controllers are housed in peripheral frame channels rather than behind the pixel array, maintaining uniform light pass-through.
Transparency relies on spatial frequency and aperture ratios. The transparency percentage is calculated by dividing the non-opaque surface area by the total surface area and multiplying by one hundred. Increasing pixel pitch raises transparency while lowering pixel density.
Low-iron float glass and anti-reflective coatings eliminate color distortion. Diodes rated up to 6,500 nits overcome intense daylight glare.
Fine Pitch (P2.8 to P3.9): Offers 50% to 60% transparency, an optimal viewing distance of 3 to 5 meters, and peak brightness ranging from 1,500 to 3,500 nits.
Standard Pitch (P7.8 to P10.4): Delivers 75% to 82% transparency, an optimal viewing distance of 8 to 12 meters, and peak brightness ranging from 4,500 to 6,500 nits.
Wide viewing-angle encapsulation ensures image consistency for off-axis pedestrians. Directional optical louvers prevent light leak inside the building.
Operating Principles: Rendering content against true black backgrounds turns dark pixels inactive, maximizing transparency and reducing power consumption.
Standard video walls use solid enclosures that completely block daylight and add substantial weight. Glass LED screens replace solid backs with open-frame profiles, cutting structural weight from 40 kg to under 15 kg per square meter.
Transparent displays leverage open-air convection for cooling, eliminating active fans and reducing overall power draw.
Structural Opacity: Glass LED systems maintain 15% to 50% transparency, whereas traditional solid video walls are 100% opaque.
Structural Weight: Glass modules weigh 8 to 15 kg per square meter compared to 35 to 45 kg per square meter for solid displays.
Natural Light Permeability: Glass screens offer excellent light pass-through, while solid video walls provide none.
Thermal Management: Transparent displays rely on passive natural convection, whereas solid walls require active cooling fans or HVAC systems.

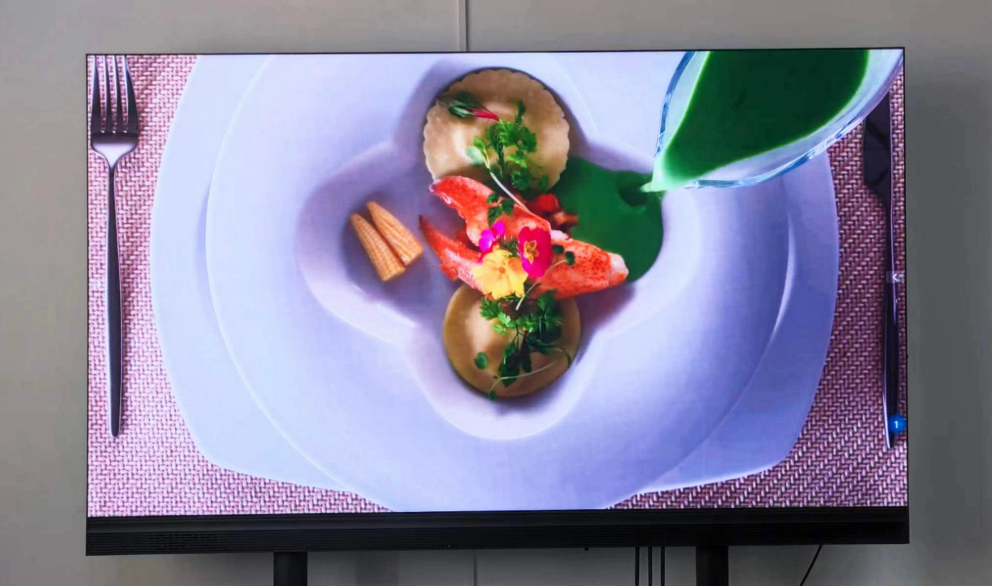

Projects needing dense commercial integration often use an all-in-one advertising LED display for indoor floors, reserving glass screens for perimeter windows.
Core parameters include high refresh rates, grayscale depth, and common-cathode power distribution. Common-cathode architecture supplies power independently to RGB dies, cutting heat generation by up to 30%.
Refresh Rate: Operates between 3,840 Hz and 7,680 Hz, verified via oscilloscope and high-speed camera testing.
Grayscale Depth: Features 14-bit to 16-bit processing color depth for smooth tonal gradients.
Ingress Rating: Ranges from IP30 for indoor models to IP65 for exterior facade applications under IEC 60529 standards.
Redundant data pathways ensure continuous operation if a primary signal line fails. PVB and EVA interlayers bind circuit sheets between protective glass layers.
Glass display modules mount behind interior glass facades or curtain walls. Overhead cable suspension and vertical mullion clamping are the primary installation methods.
Overhead Cable Suspension: Ideal for storefront windows and atriums, suspending modules directly from the ceiling slab with an ultra-low structural profile.
Vertical Mullion Clamping: Applied to commercial glass curtain walls, transferring structural loads directly to existing glass mullions.
Thermal expansion slots prevent mechanical stress during building movement. All components comply with strict flame-retardant standards.
Transparent displays convert glass surfaces into media screens without obstructing views or light.
Luxury Retail: Deployed in flagship storefront windows requiring high pixel density and detail.
Automotive Showrooms: Integrated into panoramic architectural glass requiring high brightness and glare suppression.
Corporate Headquarters: Used in atriums and lobby glass partitions prioritizing high transparency.

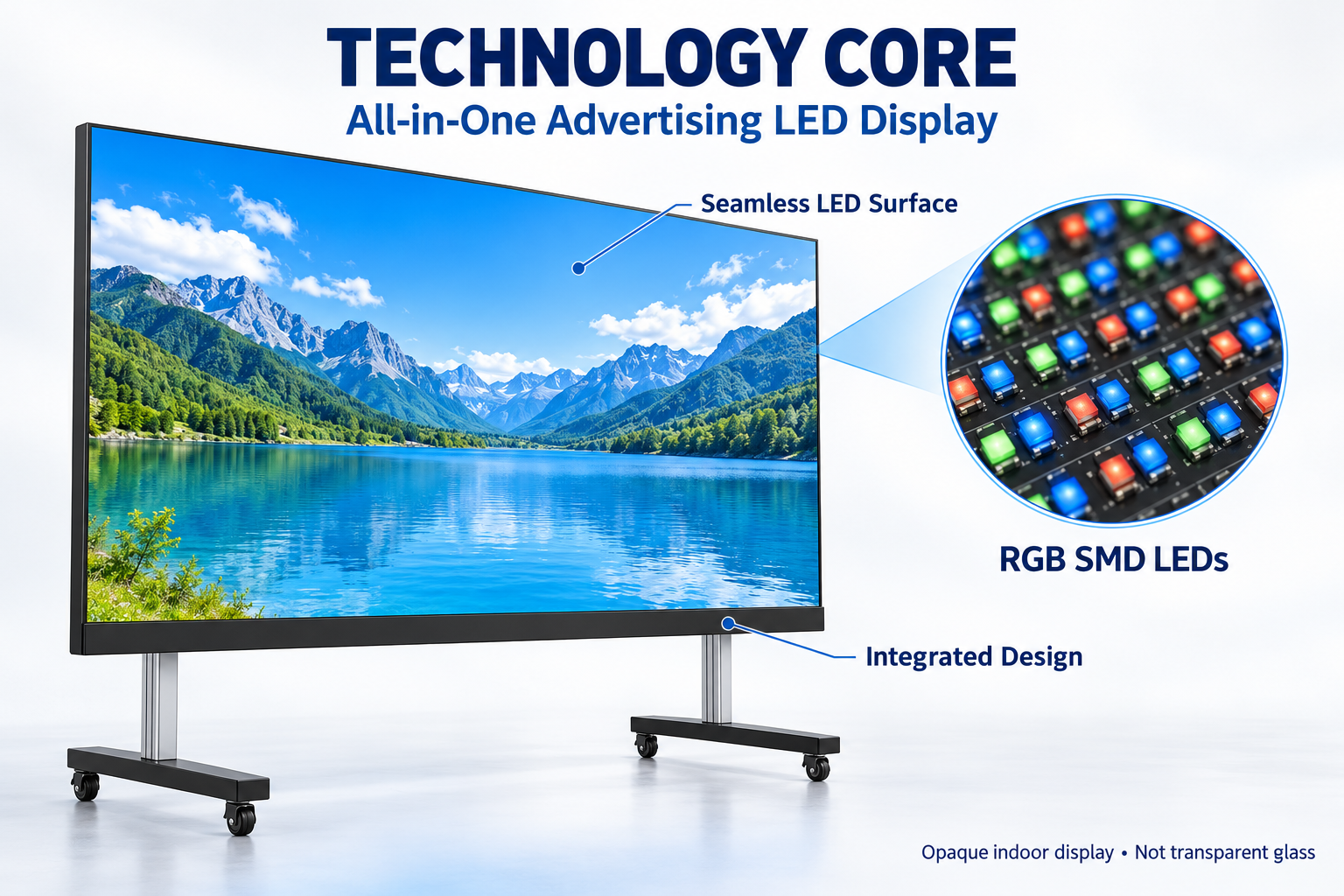

Operators frequently combine transparent window screens with an all-in-one advertising LED display to balance perimeter video with interior point-of-sale media.
Thermal management relies on natural air convection with an air gap of 15 to 30 cm between the window glass and screen. Gold-wire LED dies and PWM driver chips extend operational life beyond 100,000 hours.
Power Isolation: Disconnect primary AC power before servicing.
Structural Check: Inspect mounting clamps and safety lanyards.
Module Extraction: Release fast-locking latches on the target strip.
Component Replacement: Swap in a pre-calibrated LED bar from the interior.
