Product Description
Features of outdoor led display

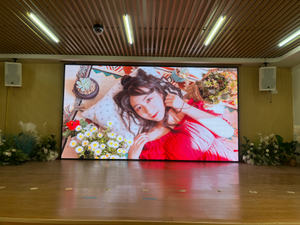

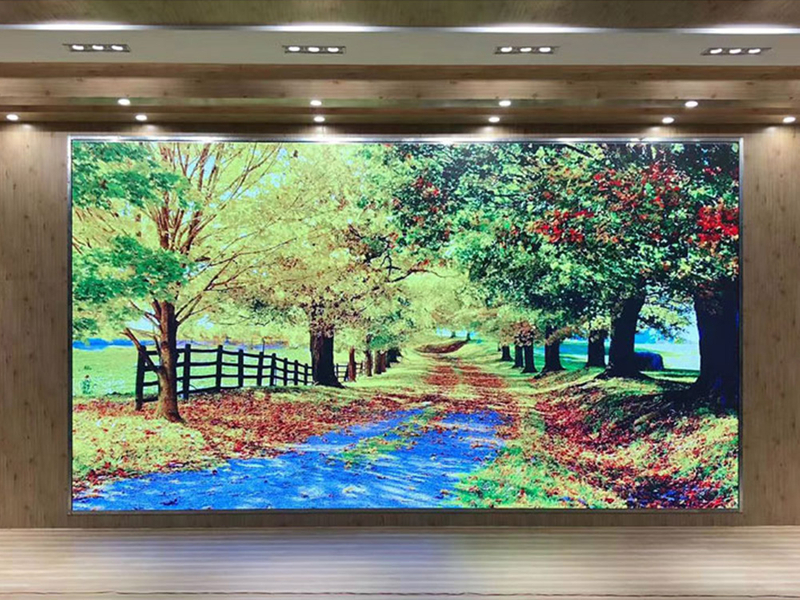

P2 led display composed of many individual LEDs that emit light in a specific order and configuration, forming images or text. They are a large-scale display system that integrates microelectronics, computer technology, and information processing. Indoor led video wall are widely used in conference rooms, exhibition halls, commercial centers, stadiums, etc. to provide high-definition, bright, clear images and text display.
Product Advantage
1.High brightness:Full color led video wall has a high brightness, with a general brightness of 800cd/sqm, which can maintain clear and visible images and text even in a bright indoor environment.
2.High definition:HD led billboard adopts a high-density LED dot matrix display screen, which can display high-definition images and text effects, making the content more vivid and vivid.
3.Large viewing angle: Led display wall have a large viewing range, and regardless of how the viewing angle changes, the clarity and color saturation of images and text can remain consistent.
4.Energy conservation and environmental protection: Full color led screen uses LED as the light source, which has the characteristics of low power consumption, high efficiency, and long service life. It can save energy, and is mercury free, lead-free, radiation free, and environmentally friendly.
5.Flexibility: Led video wall screen can be customized and spliced according to the size of the box to adapt to different locations and needs.
Technical Parameters
Pitch Size | 2 mm |
Module Size | 320*160mm |
Module Pixel(dots) | 160dots*80dots |
Pixel Configuration | 1 Red, 1 Green, 1 Blue SMD 3-in-1 |
Color scale | 65536degree/16777216colors |
Pixel density | 250000pixels/square meter |
Cabinet size | 640*480mm |
Brightness | ≥800cd/square meter |
Brightness adjustment | 64 level automatic or manual |
Power consumption | 100-1200W/square meter |
Net weight | 35kg/square meter |
Operating temperature | -25°C~+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
Driving method | 1/40 scan |
Refresh frame frequency | 1920Hz-3840Hz |
Power | 110V/220V±15% 50Hz/60Hz |
Product Uses
Indoor LED display screens are widely used in various indoor situations:
1. Commercial advertising: Interior led display can be used for indoor advertising display in stores, shopping centers, exhibition halls, cinemas, hotels, and other places to attract customers' attention and increase brand awareness.
2. Conference display: Indoor LED display screens can be used in conference rooms, venues, exhibitions, and other occasions to play the speaker's PPT, video content, etc., providing clear and clear information display.
3. Information release:Led screen billboard can be used in public places, schools, hospitals, stations, and other places to release announcements, clocks, weather, news, navigation, and other information, providing real-time and accurate information updates.
4. Entertainment venues:Large led display screen can be applied to nightclubs, bars, entertainment venues, etc., as background walls or stage decorations, and display music, videos, and other content to increase the entertainment atmosphere.
Company Profile
Qichuang was founded in 2005 and is one of the largest and most professional LED display manufacturer in Guangzhou.Our company is an integrated service provider in the LED display industry,offering mainly turnkey solutions to customers on LED display applications.
Qichuang achieves ISO9001, CE, ROHS, FCC, CCC. CB certificates. With features of stability,high resolution, vivid color,long life-span, power saving and cost saving. We have high reputation among domestic and overseas customers.
Qichuang Exported to 83+countries and regions such as USA, Canada, Mexico, Guatemala, Italy , Germany France, Poland, Russia, Qatar, UAE, Lebanon, Saudi, Arabia, Brazil, Argentina, Thailand, Indonesia. Nigeria, Ethiopia,South Africa,etc.
Qichuang LED displays are shining in outdoor advertising bilboards/ business centers/ shopping malls/sport stadiums /indoor &outdoor stages/ exhibitions/ TV stations/ traffic signs and so on.
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
4.What is your payment term?
-T/T,Western Union,and L/C.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea.Please confirm with us before placing orders.
6.How about your warranty?
-Our warranty is 2 years, and in addition, we will have a professional after-sales service team online to answer your questions.
