P6 Full Color Outdoor HD Waterproof Led Display

P6 outdoor full color LED display screen with a dot spacing of 6mm, 27777 dots/square meter, high refresh rate, waterproof and sunscreen, widely used in schools, squares, street advertisements, etc
  • P6

  • Chee Chuang

  • 8528591090

Size:
Material:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

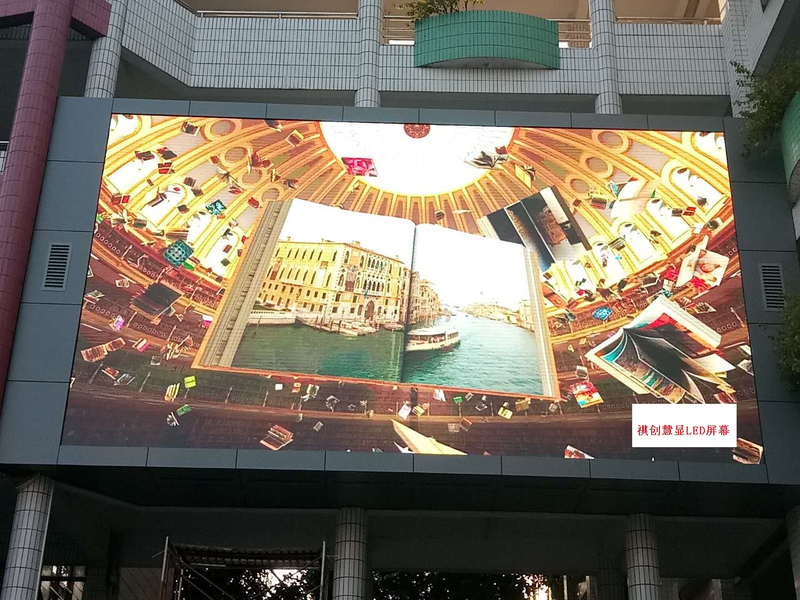

P6 Full Color Outdoor Waterproof Led Display



Features of outdoor led display

P6 outdoor led screen typically appear in the form of outdoor media, with an area ranging from tens of square meters to hundreds of square meters or even larger, high brightness, large viewing angle, and can work in sunlight. They have certain windproof, rainproof, and waterproof functions.


Product Advantage

1、 Outdoor fixed led display have a protection level of IP65 or above, which can cope with various adverse weather conditions, such as strong winds and heavy rain

2、 Large viewing angle: Indoor viewing angle can exceed 160 degrees, and outdoor viewing angle can exceed 120 degrees. The size of the viewing angle depends on the shape of the LED. The screen area of the display screen can be large or small, ranging from less than one square meter to thousands of square meters.

3、 Long lifespan: Under appropriate current and voltage usage, the lifespan of LED can reach 100000 hours.



1

2


Technical Parameters

Pitch Size
6mm
Pixel density
27777pixels/square meter
Module size
192*192mm
Cabinet size
960*960mm
Module Pixel(dots)
32dots*32dots
Brightness
≥5500cd/square meter
Screen viewing angle
≥ 160 degrees
Maximum starting power
≤ 1000W/㎡
Average power consumption
≤ 120W/㎡
Frame switching frequency
≥ 60 frames/second
Refresh frame frequency
1920Hz-3840Hz
Power
110V/220V±15% 50Hz/60Hz
Operating humidity
10%-65%RH
Working temperature range
-20-40 ℃
Control method
computer control

Product Uses

Use for subway stop signs, train stations,building exterior walls, driving safety tips and other places.
