P4 Outdoor Fixed Waterproof LED Video Wall

P4 outdoor full color LED display screen, with a point spacing of 4mm and 62500 points/square meter, high refresh rate, waterproof and sunscreen, widely used in schools, squares, street advertisements, and other places, is currently the mainstream product in the outdoor LED display screen market
  • P4

  • Chee Chuang

  • 8528591090

Size:
Material:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

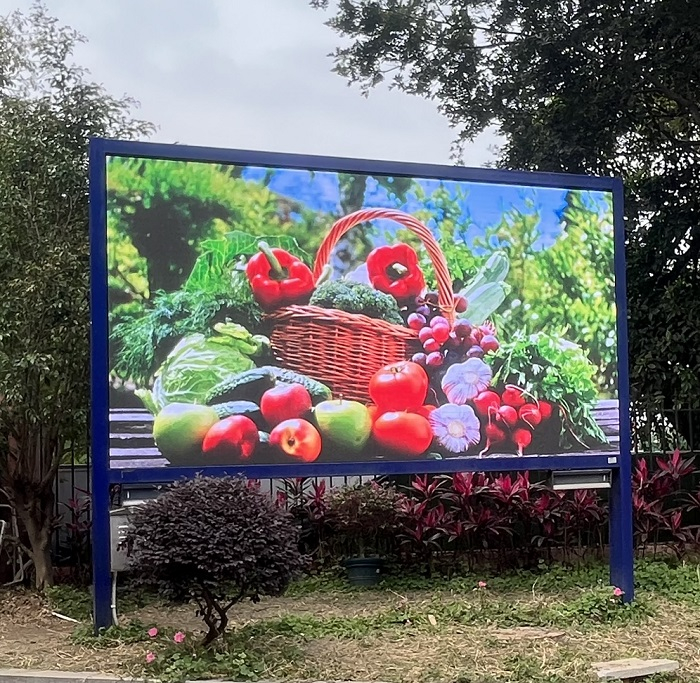

P4 Outdoor Fixed Waterproof LED Video Wall


Features of outdoor led display

P4 full color waterproof led display typically appear in the form of outdoor media, with an area ranging from tens of square meters to hundreds of square meters or even larger, high brightness, large viewing angle, and can work in sunlight.


Product Advantage

1、 Outdoor LED display screen has high brightness, with a general brightness of 5500cd and a maximum brightness of over 10000cd. It can be clearly visible even under strong light, and the display effect is good.

2、 Green and environmentally friendly, led video wall is mainly composed of LED lamp beads, which are made of non-toxic materials. And LED power consumption is quite low, generally speaking, the working voltage of LED is 2-3.6V. The working current is 0.02-0.03A. This means that it consumes no more than 0.1W of electrical energy.

3、 HD led display screen have high brightness, with a general brightness of 5500cd. They have ultra-high definition image quality effects outdoors, and can be clearly visible even under strong light, resulting in good display effects.


2

4





Technical Parameters

Pitch Size
4mm
Pixel density
62500pixels/square meter
Module size
320*160mm
Cabinet size
960*960mm
Module Pixel(dots)
80dots*40dots
Brightness
≥5500cd/square meter
Screen viewing angle
≥ 160 degrees
Maximum starting power
≤ 1000W/㎡
Average power consumption
≤ 120W/㎡
Frame switching frequency
≥ 60 frames/second
Refresh frame frequency
1920Hz-3840Hz
Power
110V/220V±15% 50Hz/60Hz
Operating humidity
10%-65%RH
Working temperature range
-20-40 ℃
Control method
computer control

Product Uses

4. Transportation: Timetables and information for bus stop signs, subway stop signs, train stations, airports, etc

Display, advertising, etc.

5. Building exterior walls: Advertising and publicity for large building exterior walls, commercial building exterior walls, etc.

6. Urban roads: road condition information, driving safety tips, public welfare promotion, etc.
