P5 Full Color Customized Outdoor HD LED Screen

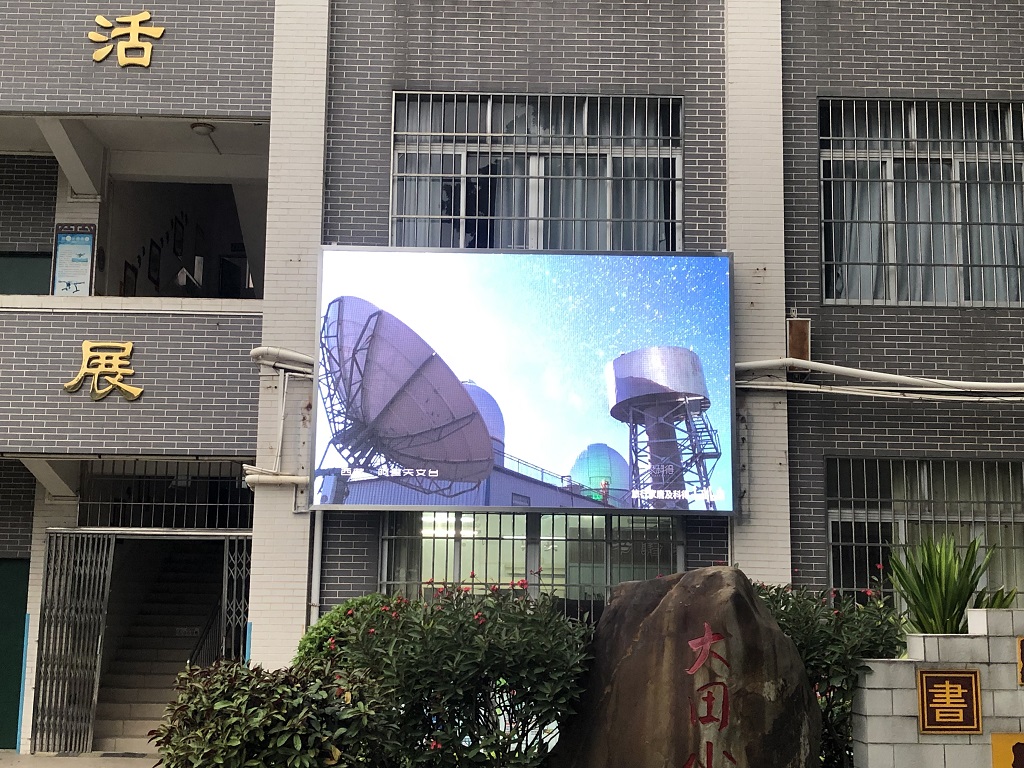

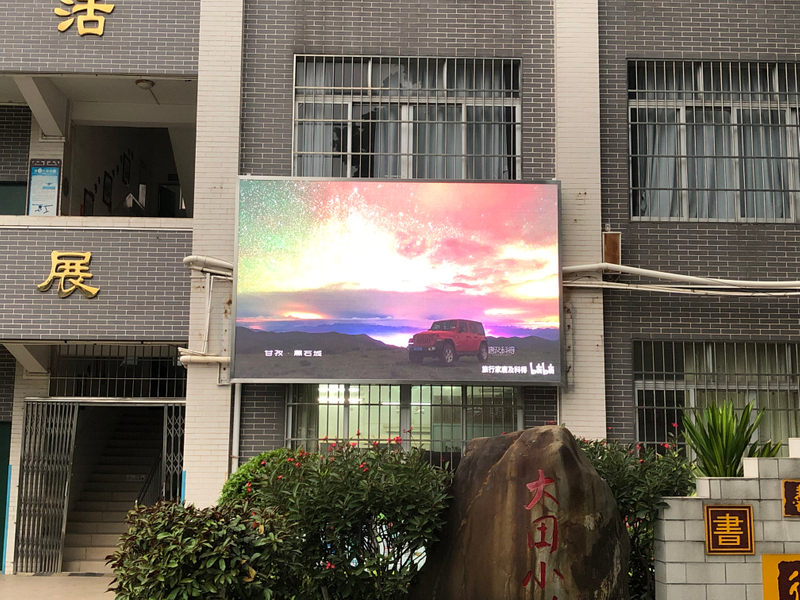

P5 outdoor full color LED display screen, with a point spacing of 5mm and 40000 points/square meter, high refresh rate, waterproof and sunscreen, widely used in schools, squares, street advertising and other places
  • P5

  • Chee Chuang

  • 8528591090

Size:
Material:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

product details

P5 Full Color Customized Outdoor HD LED Screen

Features of outdoor led display


P5 outdoor full color mainly used for outdoor advertising, stations, squares, shopping malls, etc.

Outdoor led LED electronic billboard media is divided into graphic display media and video display media, both composed of LED matrix blocks. The video display media is controlled by a microcomputer, with both text and images, playing various information in a real-time, synchronous, and clear way of information dissemination.

Product Advantage


1、 Big led screen adopts a waterproof and dustproof design, with strong UV resistance and a protection level of IP65 or above. It can withstand various adverse weather conditions such as rain, frost, strong winds, etc.

2、Energy saving and environmental protection. Compared to traditional lightbox advertising, the luminescent material used in the display screen itself is an energy-saving product, which has lower energy consumption, long LED bead life, and does not contain harmful substances such as mercury, meeting environmental requirements.




3

5


Product Advantages

1、 Long lifespan: Under appropriate current and voltage usage, the lifespan of LED can reach 100000 hours.


2、 Easy to interface with computers, rich software support, and direct access to standard video signals, audio signals, and other network devices, with strong compatibility.


3、 HD led display screen have high brightness, with a general brightness of 5500cd. They have ultra-high definition image quality effects outdoors, and can be clearly visible even under strong light, resulting in good display effects.


4、Outdoor fixed led display have waterproof properties, which can cope with various adverse weather conditions, such as strong winds and heavy rain



Technical Parameters

Pitch Size
5mm
Pixel density
40000pixels/square meter
Module size
320*160mm
Cabinet size
960*960mm
Module Pixel(dots)
64dots*32dots
Brightness
≥5500cd/square meter
Screen viewing angle
≥ 160 degrees
Maximum starting power
≤ 1000W/㎡
Average power consumption
≤ 120W/㎡
Frame switching frequency
≥ 60 frames/second
Refresh frame frequency
1920Hz-3840Hz
Power
110V/220V±15% 50Hz/60Hz
Operating humidity
10%-65%RH
Working temperature range
-20-40 ℃
Control method
computer control

Product Uses

1. Commercial center: shopping malls, shopping centers, commercial streets, etc.

2.Entertainment venues: outdoor cinemas, concerts, sports events, entertainment venues, etc.
