Home » Products » Fixed LED Display » Outdoor Fixed LED Display » HD P10 Outdoor Waterproof Advertising Led Display

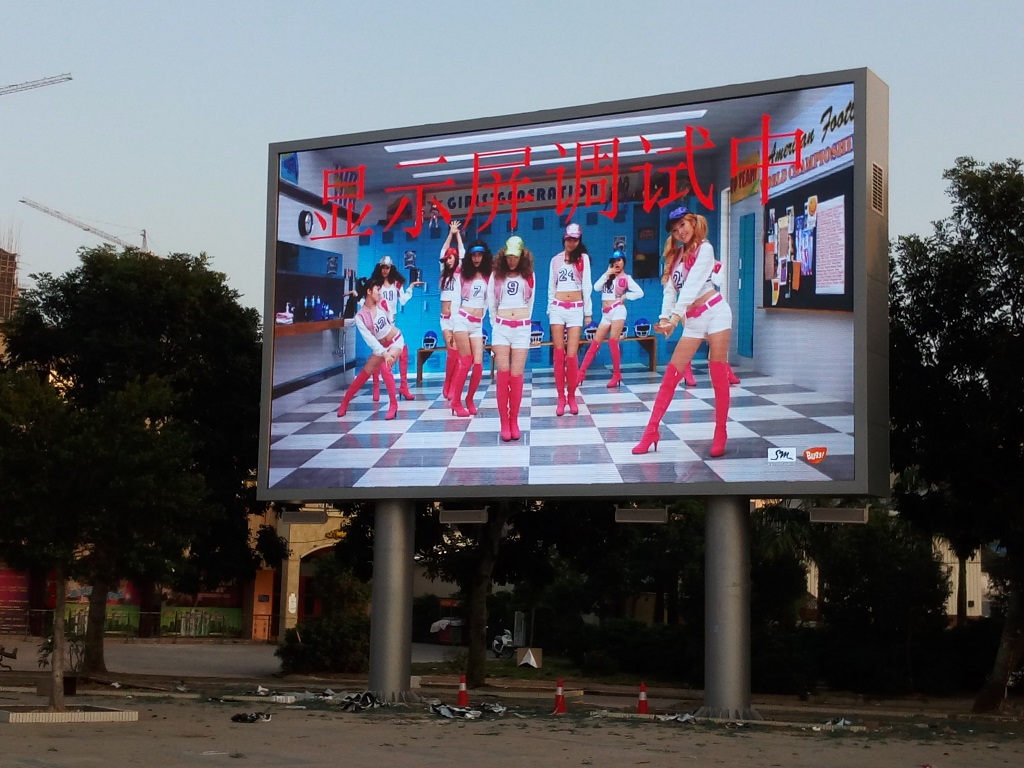

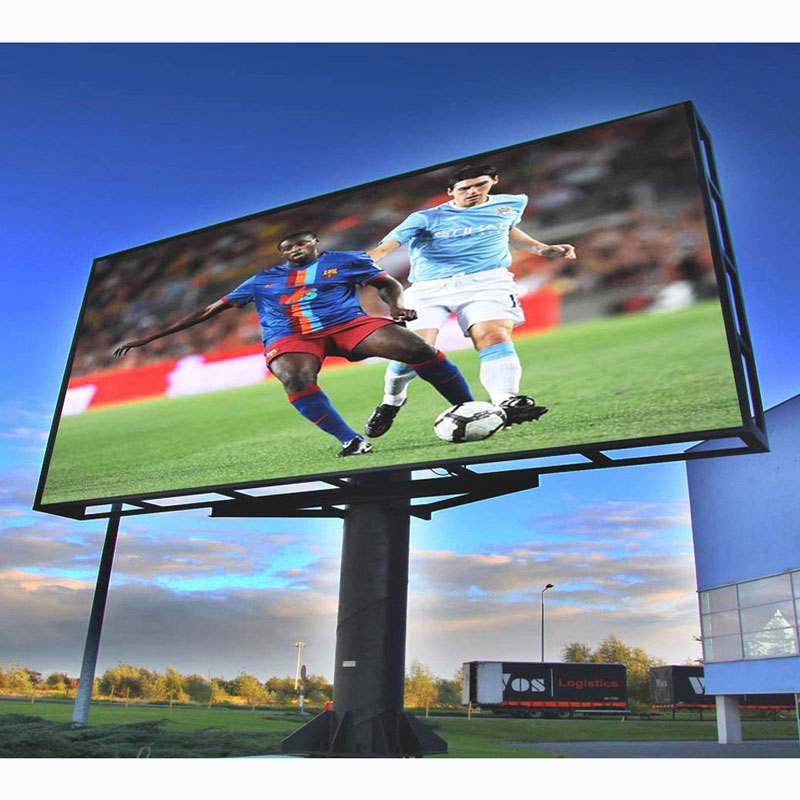

HD P10 Outdoor Waterproof Advertising Led Display

P10 outdoor full color LED display screen, with a point spacing of 10mm and 10000 points/square meter, high refresh rate, waterproof and sunscreen, recommended viewing distance of 15 meters or more, and screen area of 80 square meters or more, for use in schools, squares, street advertisements, and other places
  • P10

  • Chee Chuang

  • 8528591090

Size:
Material:
Availability:

product details

HD P10 Outdoor Waterproof  Advertising Led Display


1

2

4

3

5


Product Advantage

1、 P10 Outdoor led display have waterproof properties, strong UV resistance, and a protection level of IP65 or above, which can cope with various adverse weather conditions, such as strong winds and heavy rain


2、 Long lifespan: Under appropriate current and voltage usage, the lifespan of LED can reach 100000 hours.


3、 Easy to interface with computers, rich software support, and direct access to standard video signals, audio signals, and other network devices, with strong compatibility. Automatic selection of broadcasting equipment through programming, achieving unmanned broadcasting


4、 Green and environmentally friendly, led video wall is mainly composed of LED lamp beads, which are made of non-toxic materials. And LED power consumption is quite low, generally speaking, the working current is 0.02-0.03A. This means that it consumes no more than 0.1W of electrical energy.


5、Outdoor advertising digital led screen have high brightness, with a general brightness of 5500cd. They have ultra-high definition image quality effects outdoors, and can be clearly visible even under strong light, resulting in good display effects.



Technical Parameters

Pitch Size
10mm
Pixel density
10000pixels/square meter
Module size
320*160mm
Cabinet size
960*960mm
Module Pixel(dots)
32dots*16dots
Brightness
≥5500cd/square meter
Screen viewing angle
≥ 160 degrees
Maximum starting power
≤ 1000W/㎡
Average power consumption
≤ 120W/㎡
Frame switching frequency
≥ 60 frames/second
Refresh frame frequency
1920Hz-3840Hz
Power
110V/220V±15% 50Hz/60Hz
Operating humidity
10%-65%RH
Working temperature range
-20-40 ℃
Control method
computer control

Product Uses

1. Advertising field: outdoor billboards, billboard stations, large advertising display areas, etc.

2. Commercial center: advertising and promotion of shopping malls, shopping centers, commercial streets, etc.

3. Entertainment venues: outdoor cinemas, concerts, sports events, entertainment venues, etc.

4. Transportation: Timetables and information for bus stop signs, subway stop signs, train stations, airports, etc

Display, advertising, etc.

5. Building exterior walls: Advertising and publicity for large building exterior walls, commercial building exterior walls, etc.

6. Urban roads: road condition information, driving safety tips, public welfare promotion, etc.
