QC-P5
Chee Chuang
Availability: | |
---|---|
Product Description

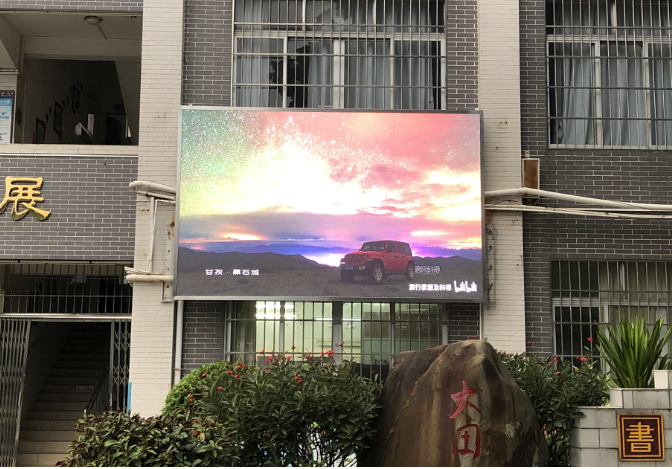

P5 outdoor led screen typically appear in the form of outdoor media, with an area ranging from tens of square meters to hundreds of square meters or even larger, high brightness, large viewing angle, and can work in sunlight. They have certain windproof, rainproof, and waterproof functions. Mainly used for outdoor advertising, stations, squares, shopping malls, etc.
Product Advantage
1、 Outdoor fixed led display have waterproof properties, strong UV resistance, and a protection level of IP65 or above, which can cope with various adverse weather conditions, such as strong winds and heavy rain
2、 Large viewing angle: Indoor viewing angle can exceed 160 degrees, and outdoor viewing angle can exceed 120 degrees. The size of the viewing angle depends on the shape of the LED. The screen area of the display screen can be large or small, ranging from less than one square meter to thousands of square meters.
3、 Long lifespan: Under appropriate current and voltage usage, the lifespan of LED can reach 100000 hours.
4、 Easy to interface with computers, rich software support, and direct access to standard video signals, audio signals, and other network devices, with strong compatibility. Automatic selection of broadcasting equipment through programming, achieving unmanned broadcasting
5、 Green and environmentally friendly, led video wall is mainly composed of LED lamp beads, which are made of non-toxic materials. And LED power consumption is quite low, generally speaking, the working voltage of LED is 2-3.6V. The working current is 0.02-0.03A. This means that it consumes no more than 0.1W of electrical energy.
6、 HD led display screen have high brightness, with a general brightness of 5500cd. They have ultra-high definition image quality effects outdoors, and can be clearly visible even under strong light, resulting in good display effects
Technical Parameters
Pitch Size | 5mm |
Module Size | 320*160mm |
Module Pixel(dots) | 64dots*32dots |
Pixel Configuration | 1 Red, 1 Green, 1 Blue SMD 3-in-1 |
Color scale | 65536degree/16777216colors |
Pixel density | 40000pixels/square meter |
View angle(H/V) | ≥140/140degree |
Brightness | ≥5500cd/square meter |
Brightness adjustment | 64 level automatic or manual |
Power consumption | 100-1200W/square meter |
Net weight | 40kg/square meter |
Operating temperature | -25°C~+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
Out of control dot | ≤1/10,000 |
Whole Display Flatness | ≤1mm Juncture |
Exchange frame speed | >150frames per second |
Refresh frame frequency | 1920Hz-3840Hz |
Control distance | 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 50Hz/60Hz |
Operating system | Windows series |
Drive mode | constant current driving, 1/8 scan |
Display mode | VGA640X480-VGA1600X1024 |
Protection Level | IP65 |
Maintenance way | Rear access |
Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Product Uses
High definition outdoor full color LED display screens are widely used in outdoor commercial advertising, mainly for outdoor advertising, stations, squares, shopping malls, etc.
1. Advertising field: outdoor billboards, billboard stations, large advertising display areas, etc.
2. Commercial center: advertising and promotion of shopping malls, shopping centers, commercial streets, etc.
3. Entertainment venues: outdoor cinemas, concerts, sports events, entertainment venues, etc.
4. Transportation: Timetables and information for bus stop signs, subway stop signs, train stations, airports, etc
Display, advertising, etc.
5. Building exterior walls: Advertising and publicity for large building exterior walls, commercial building exterior walls, etc.
6. Urban roads: road condition information, driving safety tips, public welfare promotion, etc.
Company Profile
Qichuang was founded in 2005 and is one of the largest and most professional LED display manufacturer in Guangzhou.Our company is an integrated service provider in the LED display industry,offering mainly turnkey solutions to customers on LED display applications.
Qichuang achieves ISO9001, CE, ROHS, FCC, CCC. CB certificates. With features of stability,high resolution, vivid color,long life-span, power saving and cost saving. We have high reputation among domestic and overseas customers.
Qichuang Exported to 83+countries and regions such as USA, Canada, Mexico, Guatemala, Italy , Germany France, Poland, Russia, Qatar, UAE, Lebanon, Saudi, Arabia, Brazil, Argentina, Thailand, Indonesia. Nigeria, Ethiopia,South Africa,etc.
Qichuang LED displays are shining in outdoor advertising bilboards/ business centers/ shopping malls/sport stadiums /indoor &outdoor stages/ exhibitions/ TV stations/ traffic signs and so on.
