P3
Chee Chuang
8528591090
Product Description
P3 indoor full-color LED display, high-definition small pitch LED display, dot pitch 3mm, 111111pixels per square meter, bright colors, excellent display effect, widely used in conference rooms, monitoring rooms and other places. Our P2 Indoor Commercial LED Display is designed to provide a superior visual experience in a variety of indoor environments such as surveillance rooms, shopping malls, hotels and schools. This professional-grade LED display delivers high-quality images, crisp text and engaging animations, ensuring an exceptional display for your audience.
With advanced technology and superior performance, our P2 indoor commercial LED display ensures seamless integration into any indoor environment. Its precise 2mm pixel pitch ensures clear and detailed visuals, making your content visible from any distance. This LED screen is perfect for displaying important messages, engaging advertisements, compelling videos and eye-catching graphics. Whether you need to convey an important message, promote a product, or create an immersive visual experience, our P2 indoor commercial LED screen is the ideal solution.
In addition, our P2 indoor commercial LED screen is built to last with durable materials and reliable components. This ensures its longevity and consistent performance, making it a cost-effective investment for your business or organization.
Technical Parameters
Pitch Size | 3mm |
Module Size | 192*192mm |
Module Pixel(dots) | 64dots*64dots |
Pixel Configuration | 1 Red, 1 Green, 1 Blue SMD2121 3-in-1 |
LED brand | Hongsheng/Nationstar/Kinglight |
Color scale | 65536degree/16777216colors |
Pixel density | 111111pixels/square meter |
View angle(H/V) | ≥140/140degree |
Brightness | ≥800cd/square meter |
Brightness adjustment | 64 level automatic or manual |
View distance | 3--100m |
Power consumption | 100-800W/square meter |
Net weight | 30kg/square meter |
Operating temperature | —25°C~+60°C |
Operating humidity | 10%—95%RH |
Out of control dot | ≤1/10,000 |
Whole Display Flatness | ≤1mm Juncture |
Exchange frame speed | >150frames per second |
Refresh frame frequency | 1920Hz-3840Hz |
Control distance | 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 50Hz |
Operating system | Windows series |
Drive mode | constant current driving, 1/32 scan |
Display mode | VGA640X480—VGA1600X1024 |
Protections for indoor display | IP31 |
Maintenance way | Rear access |
Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Product Uses

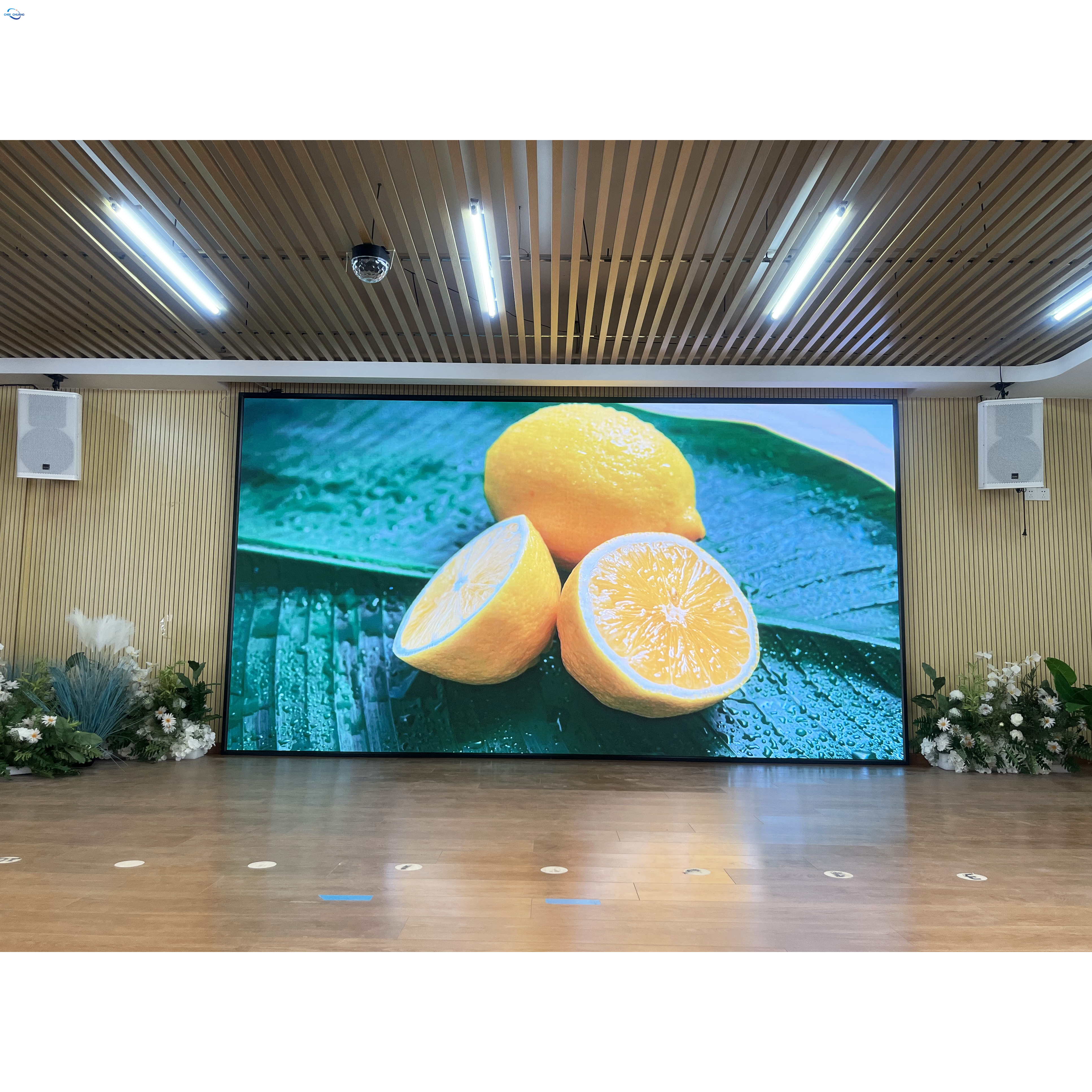

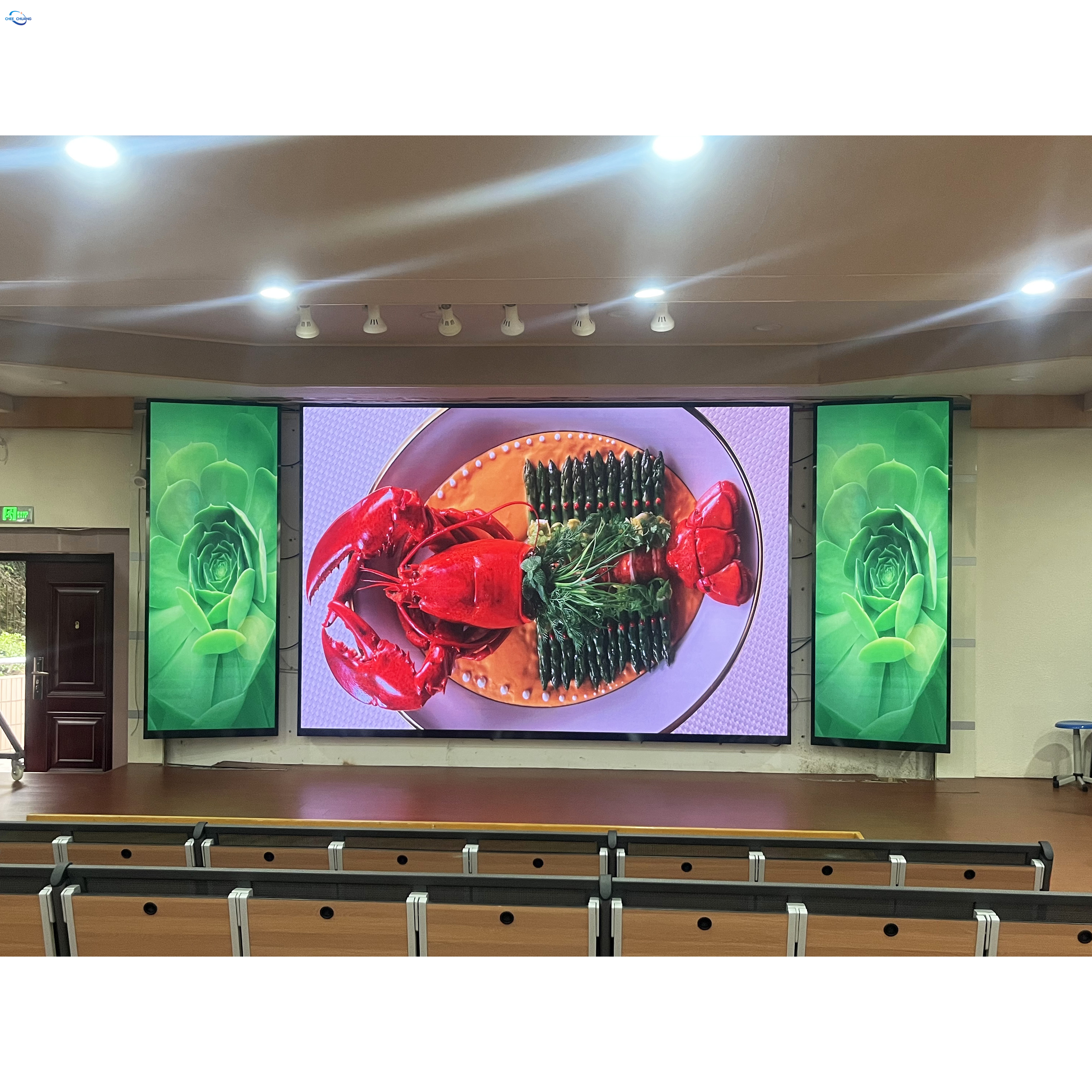

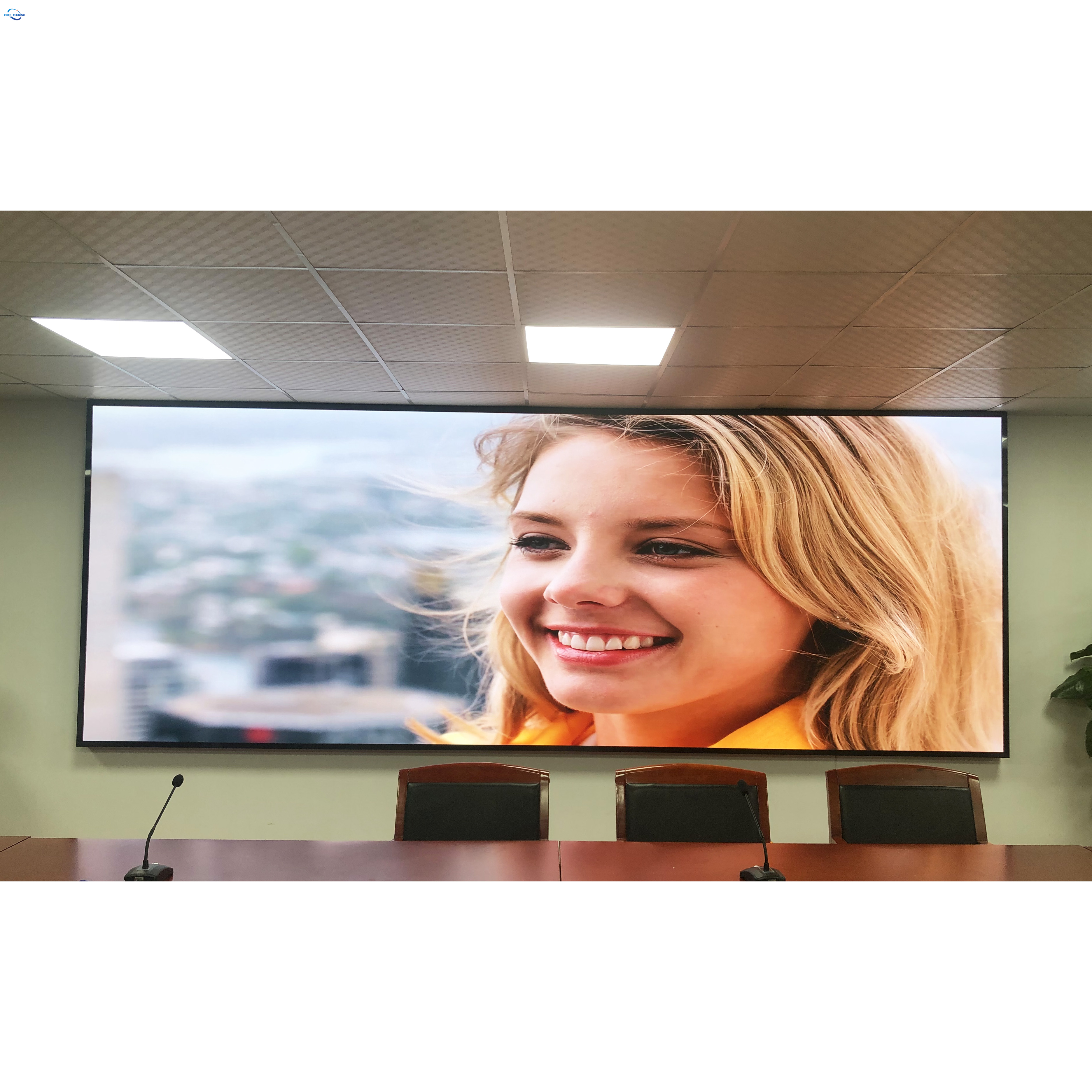

Widely used in conference rooms, schools and other places.
Our company supports fright case and wooden case packing.
Support sea, air and land transportation.
Our company has been engaged in manufacturing LED displays for more than ten years, and has gained favorable comments from customers at home and abroad.
Company Profile
Qichuang supply all kinds of LED displays,which including indoor LED displays, outdoor LED displays, transparent LED displays, Rental LED display, Stage LED DISPLAY, Taxi LED display and all customized LED displays based on customer's requirement.
Accredited by a national agency.
